Monitor Audio – W165 In-Wall Speakers

Description

Incorporating a 6 1/2″ MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

Technical Specs

• Frequency Response: 60 Hz – 25 kHz
• Nominal Impedance: 6 ohms
• Sensitivity (1W@1M): 88.5 dB
• Maximum SPL: 107.4 dBA
• Power Handling (RMS): 65 W
• Recommended Amplifier Requirements: 20 – 65 W
• Drive Unit Complement: 6 ^1/2” MMP II cone bass driver & 1″ C-CAM pivoting Gold Dome tweeter
• Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
• Overall Diameter (Including Grille): 370 x 250 mm (14^9/16 x 9^13/16“)
• Overall Depth (Including Grille): 96 mm (3^3/4“)
• Mounting Depth: 92 mm (3^5/8“)
• Cut-Out Hole Diameter: 332 x 213 mm (13^1/16 x 8^3/8“)

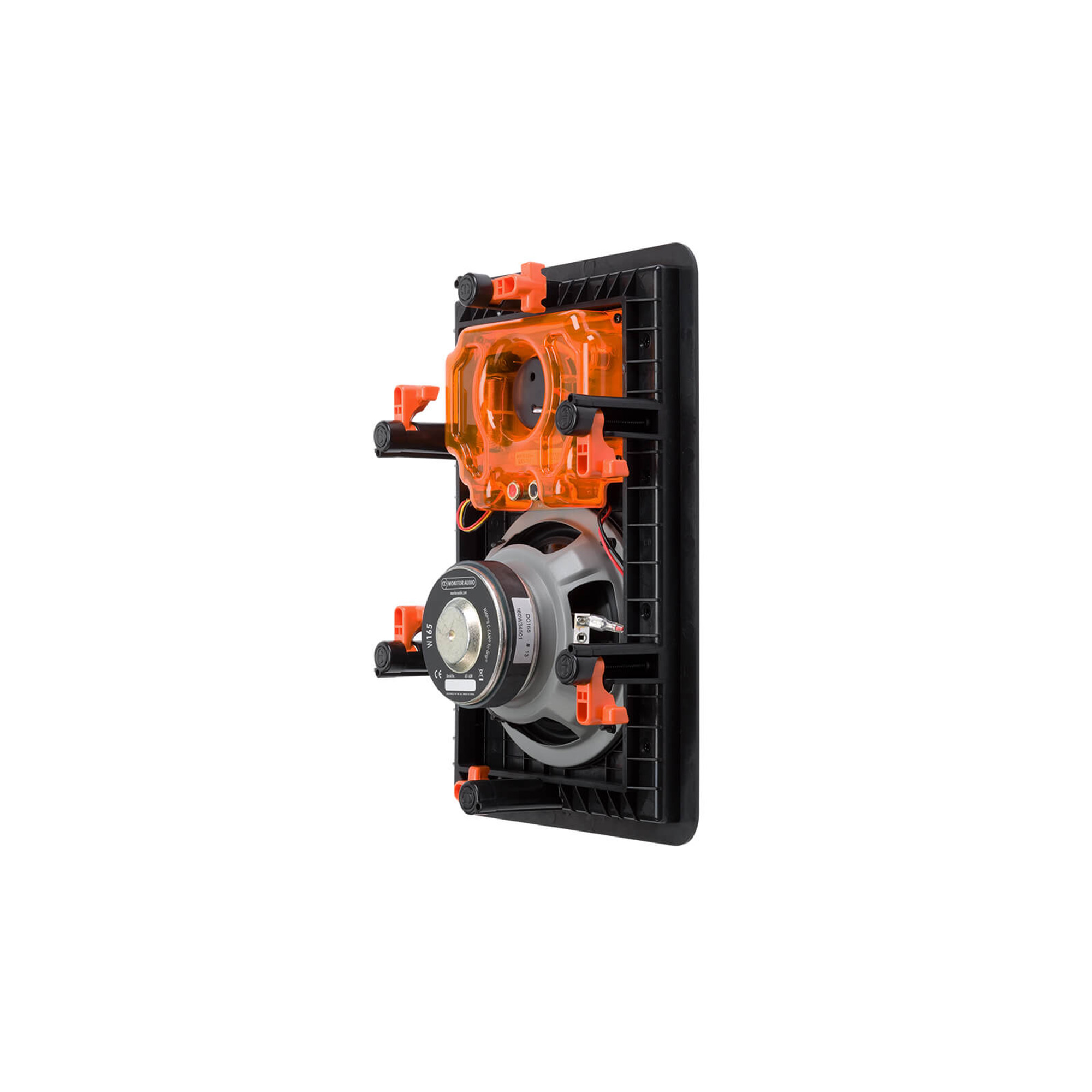

• Fixing Type: 6 position Tri-Grip dog fixings
