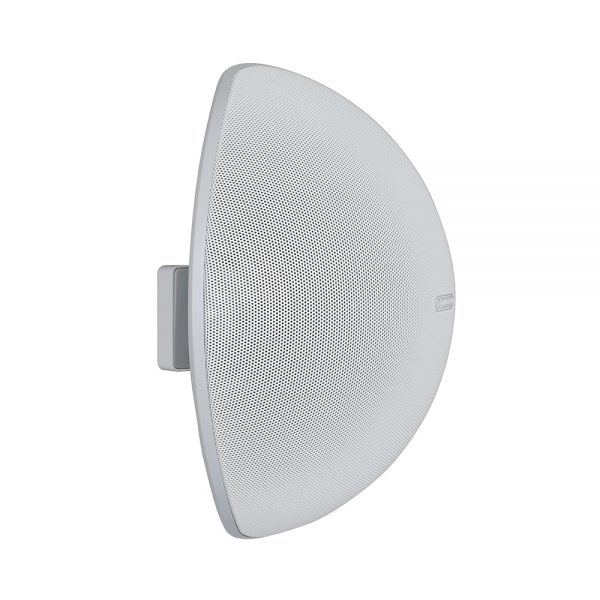

Monitor Audio – Vecta V240-LV On-Wall Speaker
Part of Monitor Audio’s Vecta interior/exterior range of architectural loudspeakers, the V240-LV adds further versatility in commercial applications with a 70/100V line level. Its integrated transformer allows multiple speakers in a system without worrying about impedance matching or losses, when long cable runs are required.
The Monitor Audio – V240-LV Architectural Loudspeakers is available in Black or White.
Please contact us for pricing and purchase enquiries.
EAN / Barcode: 5060565774537 | 5060565774520
Need an Installer?
Fill out our enquiry form and we’ll put you in contact with a trusted installer in your area.
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description

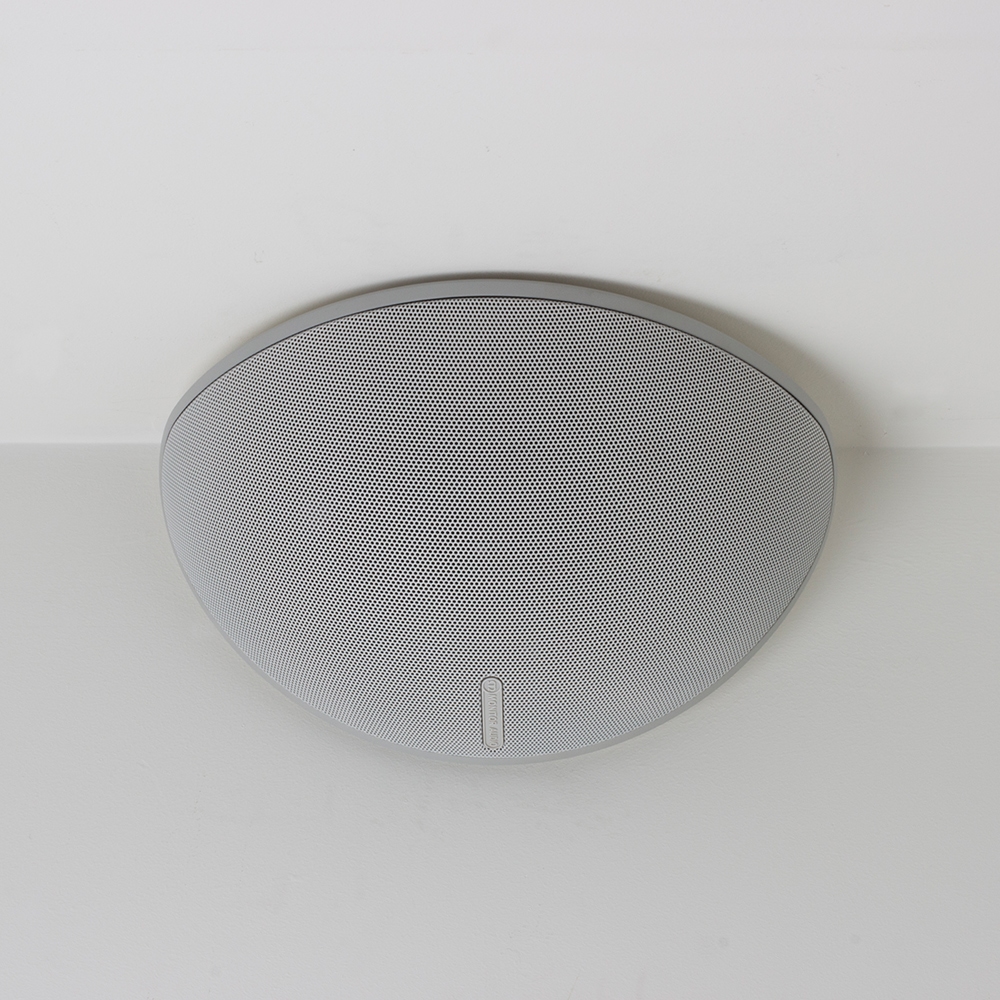

The V240-LV can be simply installed in places where other speaker choices would prove impractical. In both domestic and commercial locations, the speaker can be wall-mounted (horizontally or vertically) and discreetly installed under eaves or corner.
With an IP55 rating, the V240-LV is designed to withstand extreme environmental exposure and to deliver incredible audio quality for a lifetime. The compact form factor and unique design aesthetics ensure the speaker blends seamlessly into the background, providing architects and installers with a fresh choice for discreet internal and external audio applications.
Driver and System design
The dual 4″ C-CAM metal cone drivers have been developed to be placed on a curved baffle and to deliver a controlled sound field that minimises ceiling or wall reflections, when mounted under eaves or in a corner. The centrally mounted C-CAM tweeter ensures dispersion at the crossover point matches the mid-range, providing smooth off-axis frequency response. The fully sealed box cabinet is resistant to air noise and the ingress of water and dirt.
Fitting
Once the bespoke bracket is installed and connected, the speaker simply drops into position and is secured with a single screw. This gives a precise electrical connection automatically and with no visible wires. The intelligent design makes it easier to install the speaker in the most difficult locations.
Please note: Brackets sold separately.
Key Features
- Stylish, compact and versatile architectural design
- Intelligent automatic connection system – easier to install with no visible wires
- V240-LV – power level selection switch for system optimisation (hidden behind the badge)
- V-CLUSTER – a pole mount bracket for 360 degree coverage with 4 speakers (V240-LV model only)
- Straight wall V-MOUNT bracket – providing 25 degrees of tilt (optional wedge adds extra 32.5 degrees)
- V-CORNER bracket for corner, under eave or back to back installation
- Dual 4″ drivers featuring C-CAM metal cone technology
- 25 mm (1″) C-CAM Dome tweeter
- High-density ABS enclosure with rust proof stainless steel grille
- Available in black or white (Signal White, RAL 9003)
- Paintable to match a custom installation
Technical Specs
- System Format: 2-way (3 driver)
- Frequency Response (-6 dB): 70 Hz – 25 kHz
- Sensitivity (1W@1M): 88 dB
- Nominal Impedance: 70/100 Volt line level
- Switch: 70 V (2, 4, 8, 16, 32) power level
- Maximum SPL: 108 dBA (each)
- Power Handling (RMS): 100 W
- Recommended Amplifier Requirements: 25 – 100 W
- Crossover Frequency: 2.5 kHz
- Bracket Pivot Angle: Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45. 4-point cluster bracket – vertical.
- Drive Unit Complement: 2 x 4″ Drivers featuring C-CAM metal cone technology & 25 mm (1″) C-CAM dome tweeter
- Dimensions (H x W x D): 335.9 x 243.2 x 150 mm (131/4 x 99/16 x 57/8“)
- Protection Rating: IP55
- Operating temperature range: -25º to 65º C / -13º to 149º F
Manuals & Datasheets
Vecta V240 and V240-LV Installation Guide | Custom Install
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 3.56 KG |
