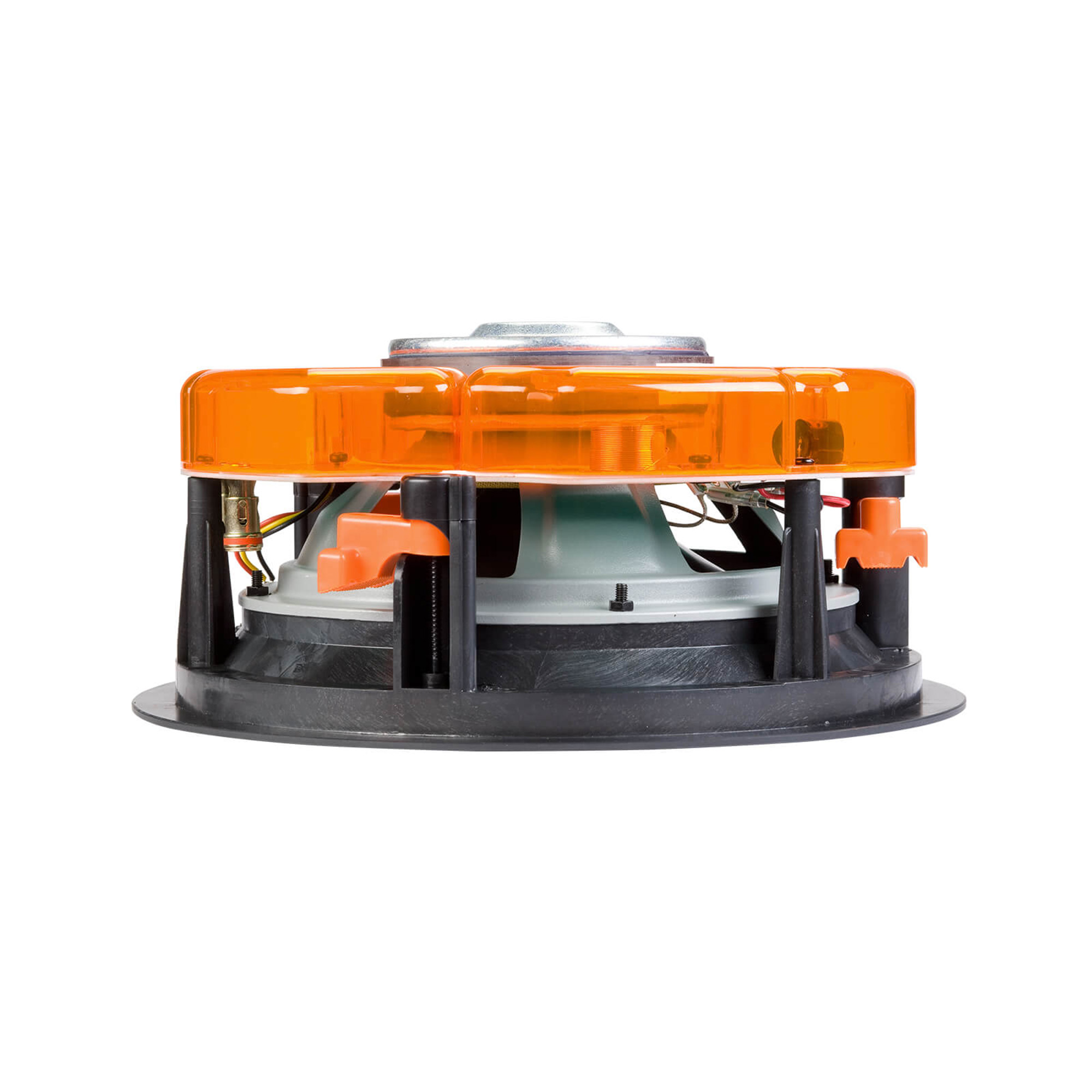

Monitor Audio – C180 In-Ceiling Speaker

Upgrade your audio experience with Monitor Audio’s C180 in-ceiling speaker. Featuring an 8-inch MMP II bass driver and C-CAM Gold Dome tweeter, this high-performance speaker offers wide frequency response and dispersion.

£225.00 inc VAT

Free Shipping for Mainland UK orders over £15 incl. VAT ** (excluding Scottish Highlands)

SKU: C180 Category: Tag:

EAN / Barcode: 05060028971459

product-page-callout-v1-_installer

Need an Installer?

Fill out our enquiry form and we’ll put you in contact with a trusted installer in your area.

product-page-callout-v1-_support

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Description

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

Product Specifications

Physical and Performance Attributes

Weight2.72 KG

Misc Product Attributes

Frequency Response 50 Hz – 25 kHz
Nominal Impedance 6 ohms
Sensitivity (1W@1M) 90 dB
Maximum SPL 111.6 dBA
Power Handling (RMS) 120 W
Recommended Amplifier Requirements 30 – 120 W
Drive Unit Complement 8″ MMP II cone bass driver
1″ C-CAM pivoting Gold Dome tweeter
Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille) 285 mm (11 1/4“)
Overall Depth (Including Grille) 126 mm (4 15/16“)
Mounting Depth 122 mm (4 13/16“)
Cut-Out Hole Diameter 247 mm (9 3/4“)
Fixing Type 3 position Tri-Grip dog fixings
Optional Square Grille – Outer Dimensions 285 x 285 mm (11 1/4“)
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.72 kg (6 lb)
Pre-Construction Bracket CB8 Pre-Construction Bracket (Green)
Back Box CCBOX-R / CMBOX-R
