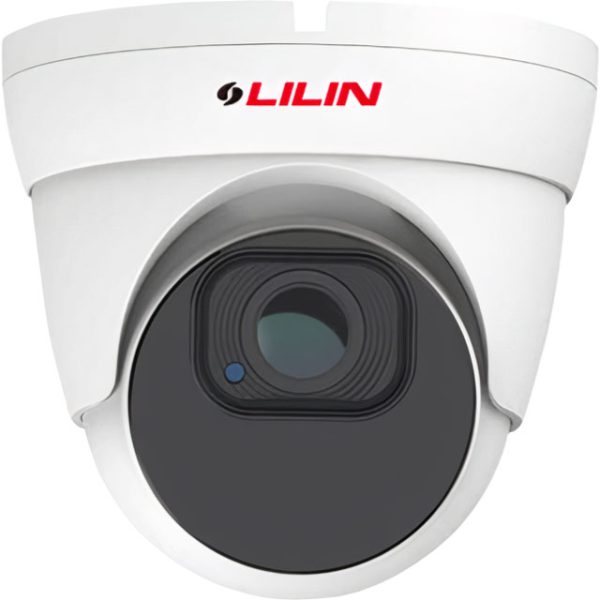

LILIN E5R4152AX CCTV IP Camera Dome 5MP CMOS 2.8-12mm Lens 45M IR IP66

Model

E5R4152AX

Min. illumination/Low Light Mode (Colour)

Color 0.002Lux @(F1.2,AGC ON) ; B/W 0 lux @ IR ON

Focal Length

2.7~13.5mm

Iris

F1.8 (W) – F3.3 (T)

Iris Control

Fixed

Angle of View

Horizontal: 31~102°, Vertical: 23~73°, Diagonal: 38~138°

Peak wavelength

850nm

Max IR distance

45M

Pick Up Element

1/2.7″ CMOS image sensor

Effective pixels

2608(H) X 1960(V) = 5,111,680 (Pixels)

CE

Yes

FCC

Yes

IP Rating

IP66

CPU

Intel Core i7 or higher grade

OS

Windows 7 or above

RAM

8GB or more, Dedicated Graphics Card

Web browser

Microsoft® Internet Explorer® 10 and later

Alarm Input / output

Mono, 1.98 Vp-p, 2.2KΩ, RCA connector

Audio

Two-way Audio, G.711 u-law / PCM

Video Compression

H.265/HEVC Main Profile, H.264 Main and High Profile , Motion JPEG

Video streaming

streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth

Number of streams

3

Video bitrate

128Kbps – 8192Kbps, Frame rate and bit rate controllable on-the-fly, VBR / CBR / GOP supported, H.264/H.265

Maximum Frame Rate

2592×1920 / 20 fps

Encryption

Base64 HTTP encryption, DDNS via HTTPS

Authentication

Digest HTTP authentication, RTSP Authentication, TLS, DDNS via HTTPS

Access

Multiple user access levels with password protection

User accounts

7 user accounts available

Resolution

Mainstream : 2592×1920, 2304×1728, 2304×1280,1920×1080, 1280×960, 1280×720

Substream : 1280×720, 720×576, 720×480, 640×480

Mobilestream : 720×480,640×480,352×240

Scanning System

Progressive Scan

Infrared Cut Filter

Auto / Schedule / Day (Color) / Night (Mono)

White Balance

Auto / Manual (Adjustable)

Electrical Shutter

1/30(1/25)s – 1/20000s

Sense Up+

Off / x2 / x4

Auto Gain Control

6 / 12 / 18 / 24 / 30 / 36 dB

S / N Ratio

More than 48dB (AGC off)

3D Noise Reduction

Yes

Privacy Masking

Off / On (4 zones)

Image Effects

Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip

EV (Exposure Value)

Adjustable

Mobile Application

Integrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support

Video Management

ONVIF Profile S / LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API

SD Card (recording)

Support Micro SD/SDHC/SDXC card for circular recording (card is not included)

Maintenance

Firmware update via HTTP and IP Scan Firmware available at web site

Alarm event triggers

Motion / Network lost detection / Global Counter / Virtual Input / Metadata

Alarm event actions

FTP / SMTP / HTTP post / SD card / SAMBA / Global Counter / Virtual Input / Push Service notification

Languages

English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese

Network Interface/Ethernet

10Base-T / 100Base-TX, RJ-45

OSD

Text overlay for date, time, and camera name (position configurable text overlay for date, time, camera name)

CPU.Memory

Embedded SoC ARM Cortex-A7, 800MHz, 128MB DDR3, 64MB flash memory

Network OS

Embedded Linux 3.10

Protocols

IPv4, TCP, UDP, HTTP, HTTPS, SMTP, NTP, DDNS, FTP, ARP, DHCP, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S

Max number of online users

7 simultaneous users

Video Display

ActiveX

Log

System / Config / User / Record / Storage / Network

Starting Temperature

-10°C – +50°C (14°F – 122°F)

Operating temperature

-30°C – +50°C (-22°F – 122°F)

Storage temperature

-25°C – +60°C (-13°F – 140°F)

Operating humidity

0% ~ 95% RH

Power Supply

DC12V ±10% / PoE (IEEE 802.3af compliant)

Power Consumption

DC12V, 6W / PoE, 8W

Dimensions

Ø135.56x 127.04(H) mm

Weight

700g

Casing Material

Aluminum alloy
