HDANYWHERE – XTND 4K (100) ARC + TPC

When you need 18Gbps Ultra HD 4K with HDR and you only have a single Cat6 cable, look no further than the HDANYWHERE XTND 4K (100) TPC.

Supports:

4K up to 100m and 1080p up to 150m.
Two-way IR and 10/100 Ethernet passthrough.
PoE power to the RX – one power supply needed only.
Multichannel audio.

£599.00 inc VAT

In stock

Free Shipping for Mainland UK orders over £15 incl. VAT ** (excluding Scottish Highlands)

SKU: 2.50.751 Category: Tag:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC
HDANYWHERE - XTND 4K (100) ARC + TPC

Description

XTND 4K (100) ARC + TPC

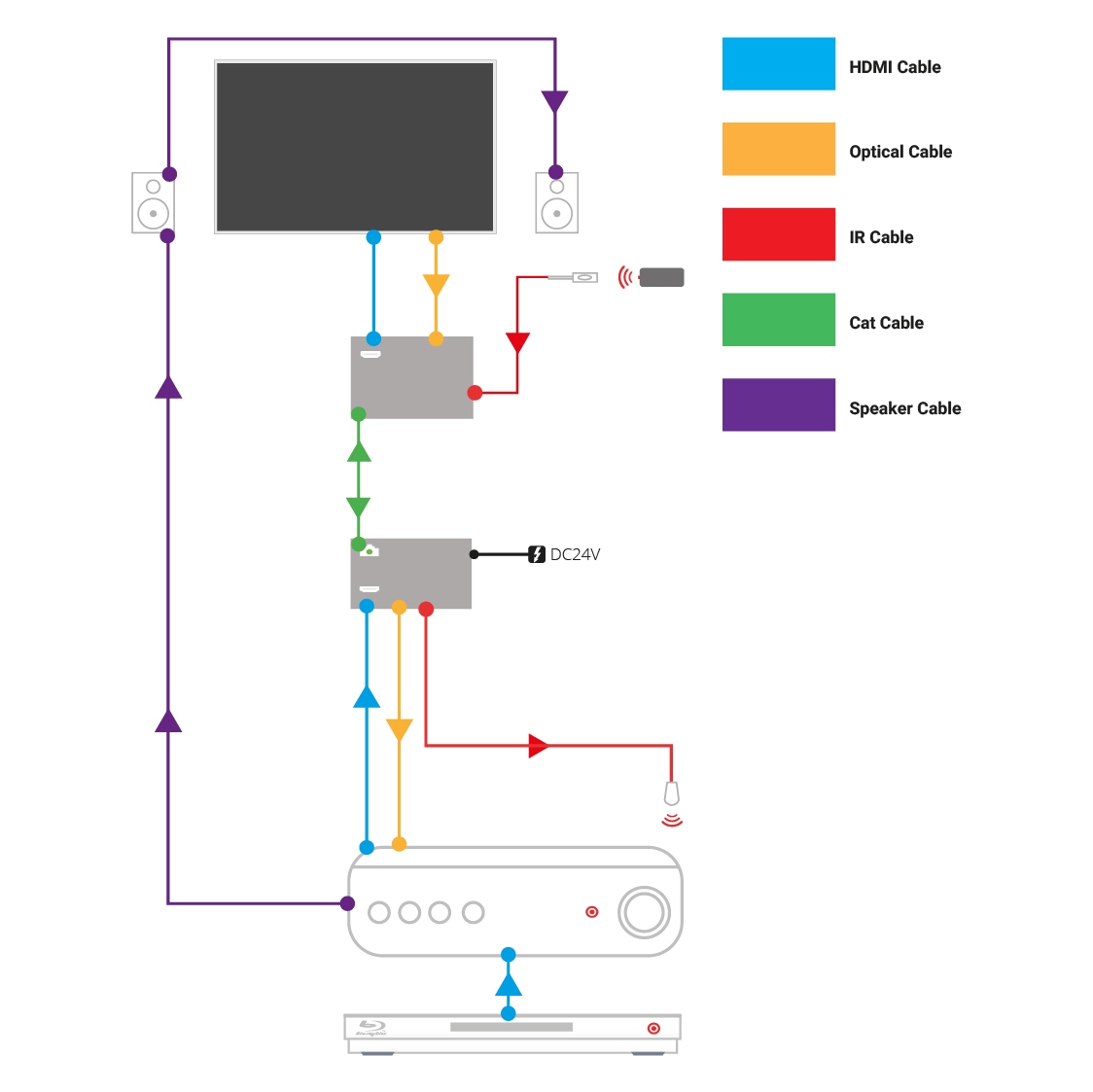

A HDMI 2.0 / HDBaseT 2.0 extender combo that offers 18Gbps premium UHD/4K 60Hz 4:4:4 data rates, as well as all current HDR formats. Over one twisted pair Cat cable, Dolby Vision®, HDR10, and HLG can be sent up to 100 metres. The extender includes 2x integrated 10/100 Ethernet LAN connections at RX, as well as useful audio return connectivity through HDMI-ARC, Optical, or two-way stereo.

Tipping Point Compression

Tipping Point Compression with DSC allows 18Gbps content to be sent through HDBaseT 2.0 technology with no discernible reduction in video quality. TPC supports all HDR formats, including Dolby Vision, while preserving the original HDR Meta and supporting all chroma subsampling and colour space settings (4:4:4, 4:2:2, and 4:2:0).

Unboxing the new HDANYWHERE XTND 4K series of HDMI over Cat Extenders

Manual
Datasheet

Features

HDMI® 2.0 (a/b) HDCP 2.2 compliant

18Gbps data rate throughout (up to 100m)

Long-range mode allows for 1080p up to 150m

Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4

Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®

Supports all current audio formats up to Dolby Atmos® and DTS:X®

RX>TX audio return via Optical or HDMI-ARC to Optical on TX

Bi-directional stereo transmission

Bi-directional PoH - can be powered from either RX or TX.

2x integrated 10/100 Ethernet LAN connections at RX

Sold as a complete install package, with all IR cabling and mounting kit included.

UK / EU / AU / US multi-territory adapters included

What's Included?

1x XTND4K100TPC Transmitter

1x XTND4K100TPC Receiver

2x IR RX

2x IR TX

1x 24V/1A DC PSU

4x Wall mounting brackets

Technical Specs
Inputs x outputs

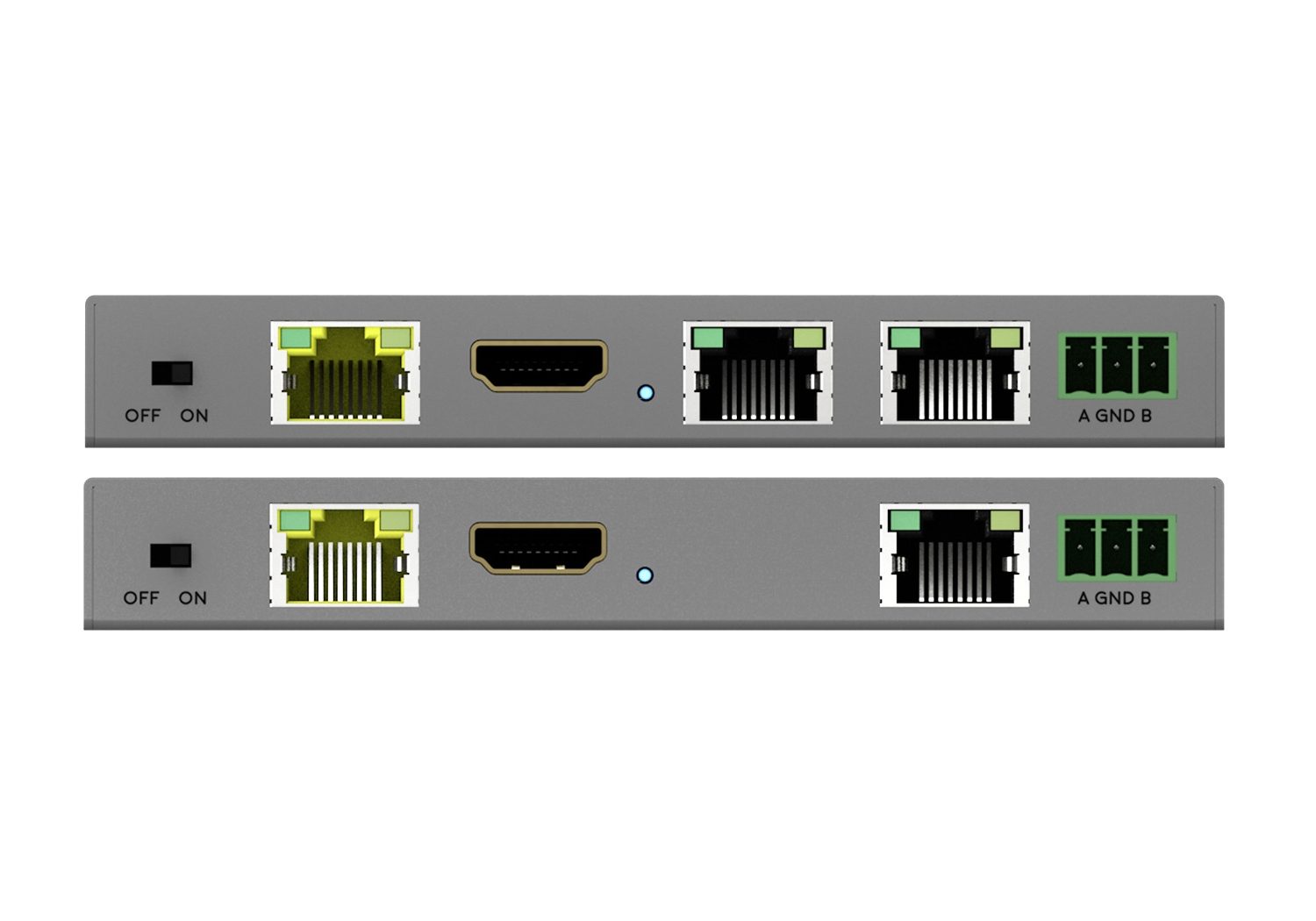

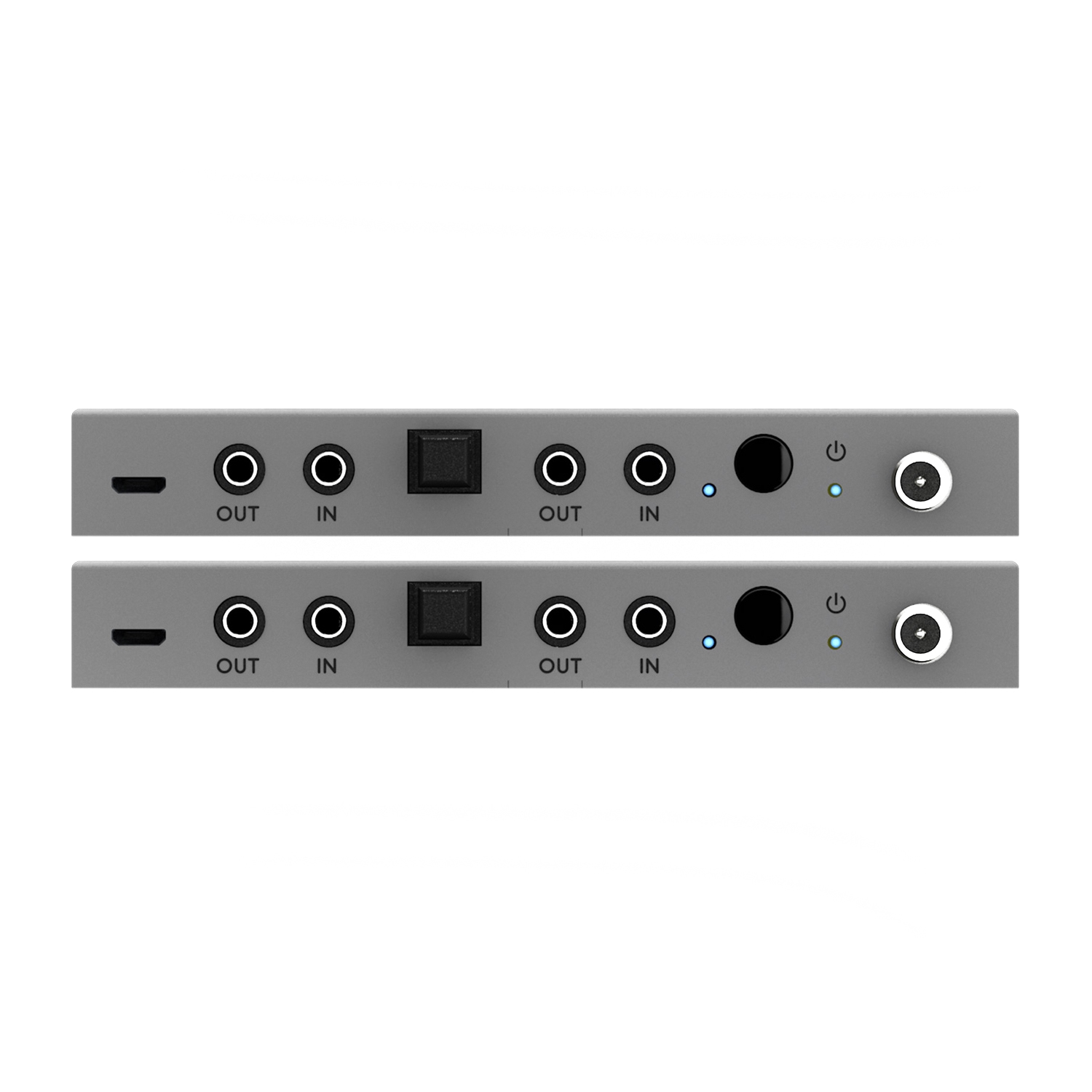

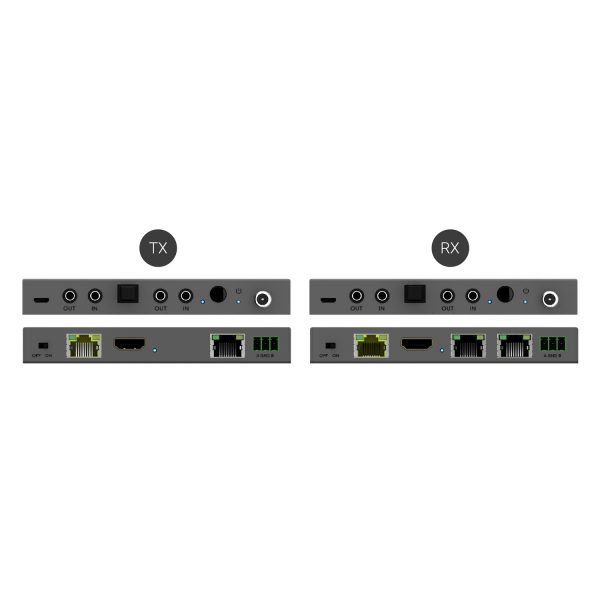

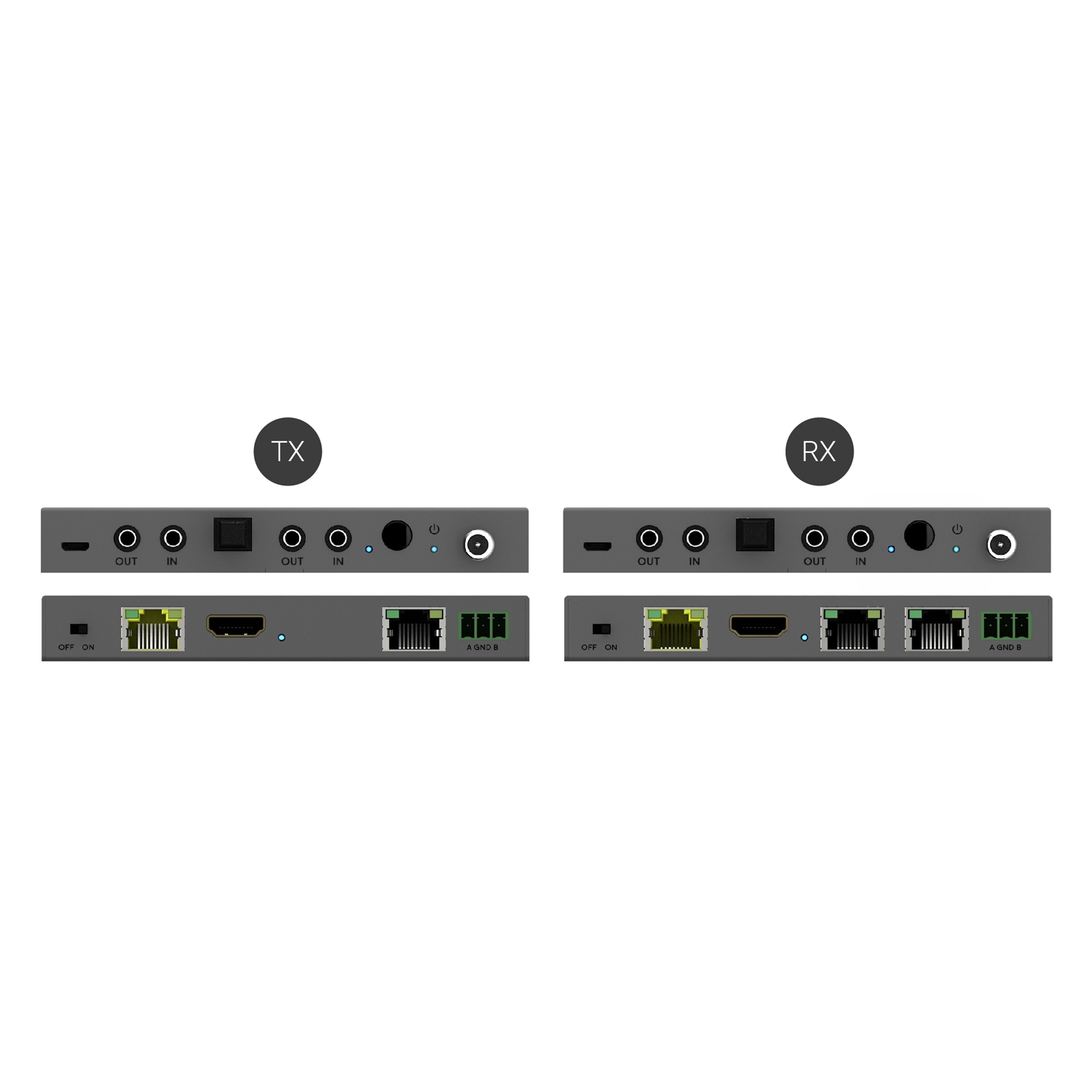

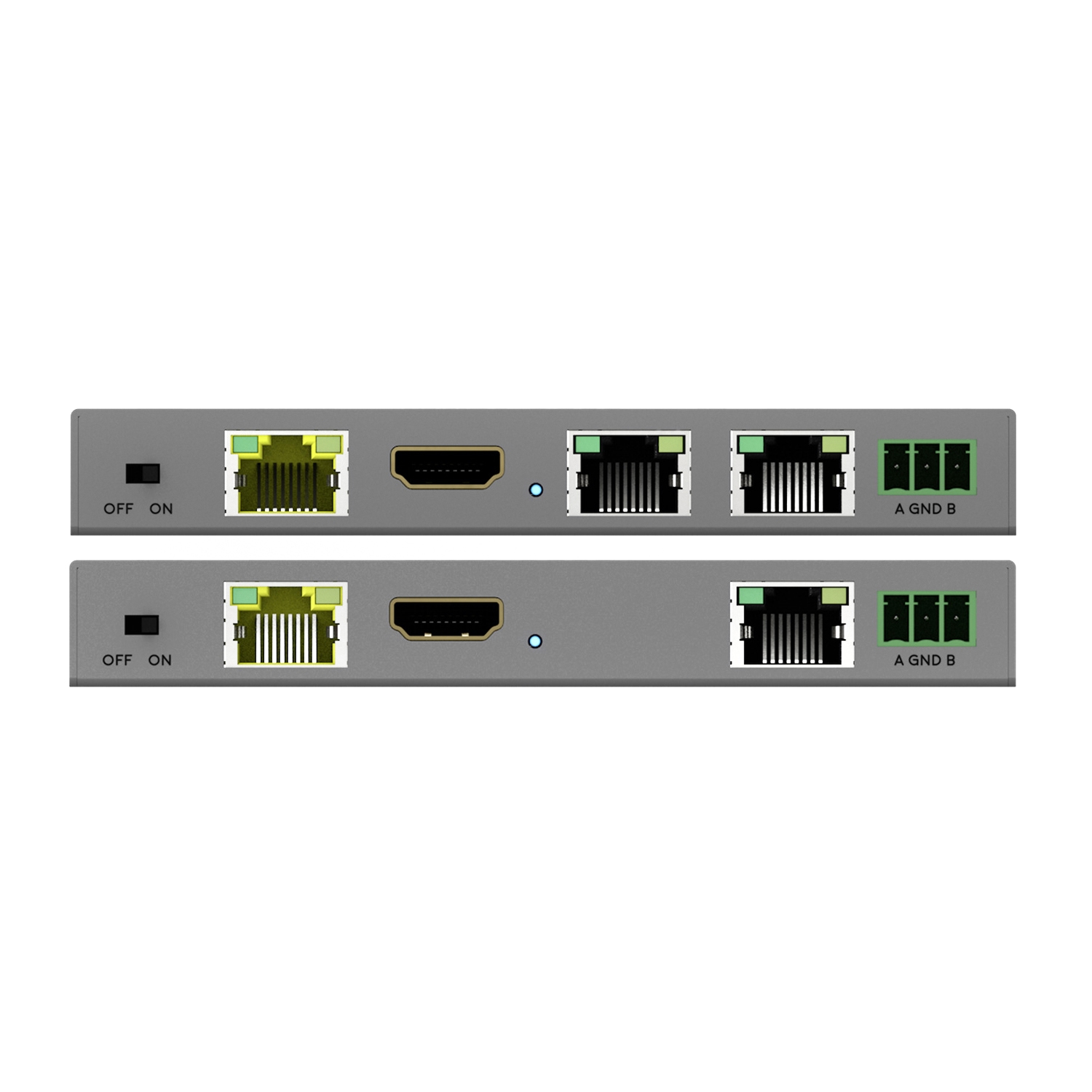

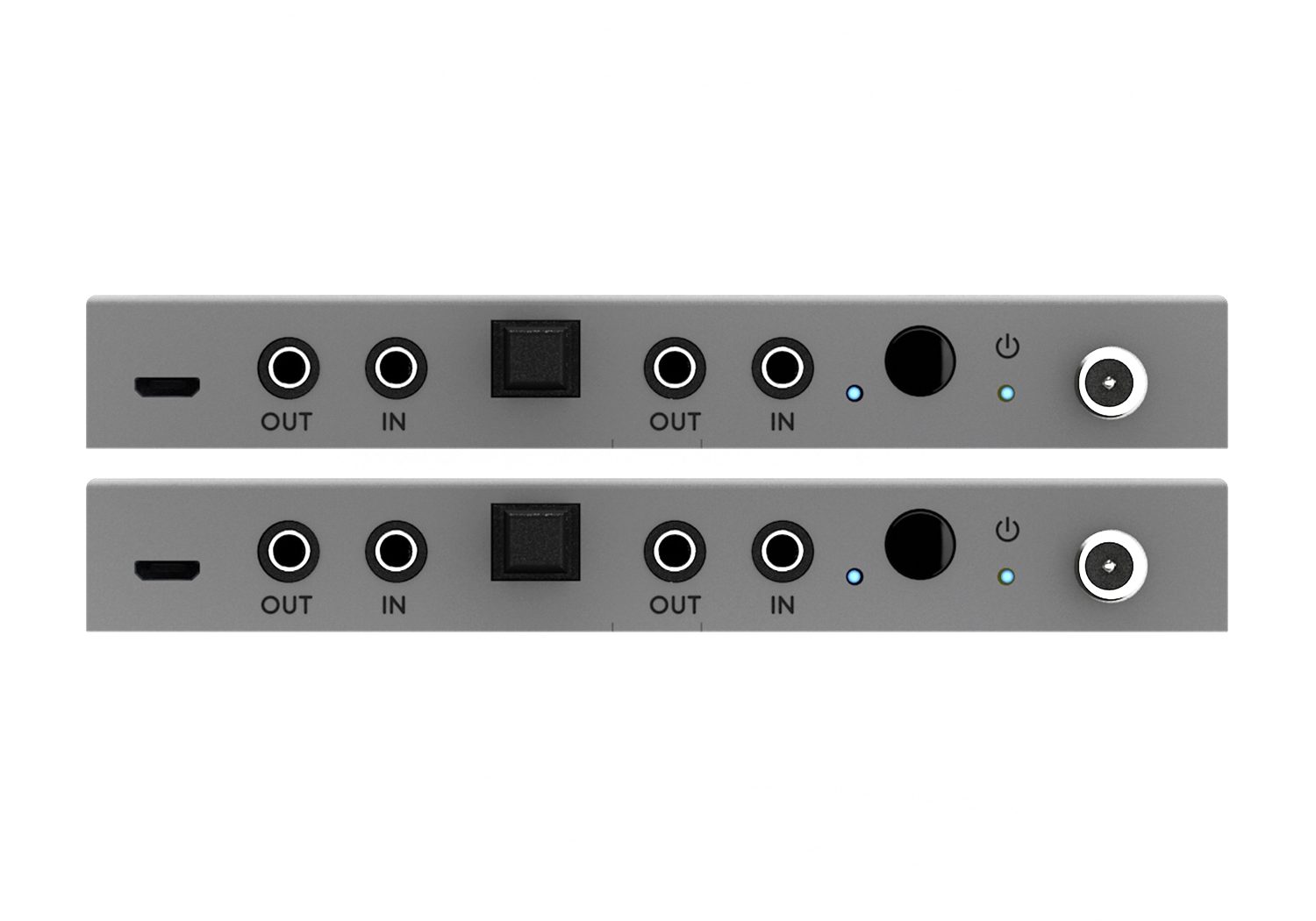

  • TX: HDMI in / RJ45 HDBaseT out / RJ45 LAN (10/100) / 2x Stereo 3.5mm jacks (in/out) / Optical out / RS232 / 2x IR 3.5mm jack (in = to RX / out = from RX)
  • RX: RJ45 HDBaseT in / HDMI out / 2x RJ45 LAN (10/100) / 2x Stereo 3.5mm jacks (in/out) / Optical out / RS232 / 2x IR 3.5mm jack (in = to TX / out = from TX)
Transmission tech.
  • HDBaseT 2.0 Class C + TPC
Video bandwidth
  • 594MHz clock / 18Gbps data
ESD protection
  • ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Control
  • Bi-directional IR and RS232 + HDMI-CEC pass through.
Power
  • 24V/1A DC screw type connector
Power consumption
  • 9.5W (max)
General
Form factor
  • Lightweight slender aluminium enclosure
Device / Package weight
  • TX / RX: 176g each
  • Package: 1100g
Dimensions (W x D x H)
  • TX / RX: 127 / 110 / 17 mm
Operating temperature
  • 0°C ~ 40°C
Storage temperature
  • -20°C ~ 60°C
Relative humidity
  • 20~90% RH (non-condensing)
Guarantee
  • 2 year guarantee

Product Specifications

Physical and Performance Attributes

Weight1.1 KG
