HDANYWHERE – MHUB MAX (4×4) (UK)

Winner of Matrix / Signal Distribution Product Of The Year at Smart Building Awards 2018
HDA has begun shipping a 4×4 HDMI 2.0 matrix with maximum bandwidth capabilities. It’s HDA’s ultimate matrix option for cinema purists, supporting the full HDMI 2.0 (a/b) 18Gbps max data rate, capable of carrying the most premium UHD/4K 60Hz 4:4:4 content, along with all HDR formats (10 & 12-bit), Dolby Vision, HDR10+ and HLG.

Unfortunately, this product is temporarily out of stock. We are awaiting information regarding the availability of this product.

Please contact us for alternatives and assistance.

Contact Us

Free Shipping for Mainland UK orders over £15 incl. VAT ** (excluding Scottish Highlands)

SKU: 2.50.747 Category: Tag:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us
HDANYWHERE - MHUB MAX (4x4) (UK)
HDANYWHERE - MHUB MAX (4x4) (UK)
HDANYWHERE - MHUB MAX (4x4) (UK)
HDANYWHERE - MHUB MAX (4x4) (UK)
HDANYWHERE - MHUB MAX (4x4) (UK)
HDANYWHERE - MHUB MAX (4x4) (UK)

Description

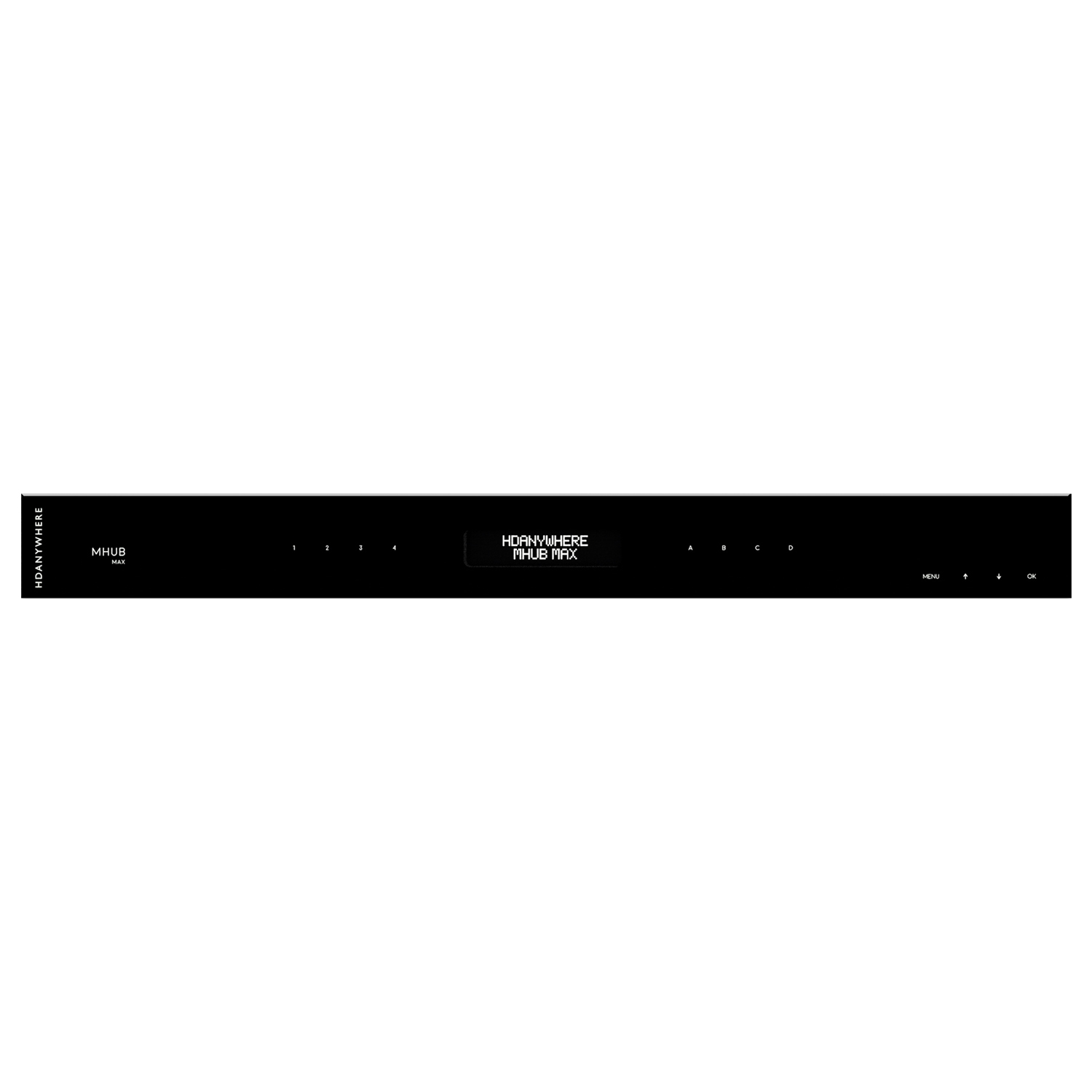

MHUB MAX (4x4)

The MHUB MAX is a 4x4 HDMI 2.0 Ultra HD Premium matrix with high bandwidth. It supports the entire HDMI 2.0 (a/b) 18Gbps max data rate, making it capable of transmitting the most premium UHD/4K 60 4:4:4 material, as well as all HDR codecs (10 and 12-bit), Dolby Vision, HDR10+, and HLG.

Manual
Datasheet

Features

HDMI® 2.0 (a/b) HDCP 2.2 compliant

18Gbps data rate throughout

Backlit fade in/out touch panel controls

Web GUI for easy config and setup (MHUB-OS)

Remote system monitoring and management (HDA Cloud)

Advanced EDID management

Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4

Supports all current High Dynamic Range (HDR) formats

Supports all current audio formats up to Dolby Atmos® and DTS:X®

Multichannel audio extraction via digi coax

Sold as a complete install package with mounting kit included.

What's Included?

1x MHUB MAX (4x4) matrix hub

1x MHUB (4x4) infra-red (IR) remote control

1x IEC power lead

1x IR RX

2x 19” rack mounting ears

Technical Specs
Inputs x outputs
  • 4 HDMI / 4 HDMI
Transmission tech.
  • Native HDMI
Video bandwidth
  • 594MHz
ESD protection
  • ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Power consumption
  • 30W (max) 0.5W (standby)
Hub Control
  • Web GUI, IR, TCP/IP, RS232, App, Alexa)
App Control
  • Source selection / matrix hub only.
General
Form factor
  • 19”/1U aluminium rack-mountable unit
Device / Package weight
  • Device: 1820g
  • Package: 2200g
Dimensions (W x D x H)
  • Hub: 440 / 284 / 45mm (without feet)
Operating temperature
  • 0°C ~ 40°C
Storage temperature
  • -20°C ~ 60°C
Relative humidity
  • 20~90% RH (non-condensing)
Guarantee
  • 3/4-year guarantee (Cloud registration required)

Product Specifications

Physical and Performance Attributes

Weight3.4 KG
