HDANYWHERE – Dolby™ & DTS® AV Signal Manager

A 4K HDMI with Dolby Audio® and DTS-HD® Stereo Audio Downmixer supports the transmission of high bandwidth 18Gbps video through HDMI and allows the associated audio to be extracted and split to both digital and analog audio outputs, providing high-quality audio and video.

Unfortunately, this product is temporarily out of stock. We are awaiting information regarding the availability of this product.

Please contact us for alternatives and assistance.

Contact Us

Free Shipping for Mainland UK orders over £15 incl. VAT ** (excluding Scottish Highlands)

SKU: 2.50.838 Category: Tag:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us
HDANYWHERE Dolby Downmixer Unit & Box Listing
HDANYWHERE Dolby Downmixer Front Listing
HDANYWHERE Dolby Downmixer Back Listing
HDANYWHERE Dolby Downmixer Contents Listing
HDANYWHERE Dolby Downmixer Unit & Box Listing
HDANYWHERE Dolby Downmixer Front Listing
HDANYWHERE Dolby Downmixer Back Listing
HDANYWHERE Dolby Downmixer Contents Listing

Description

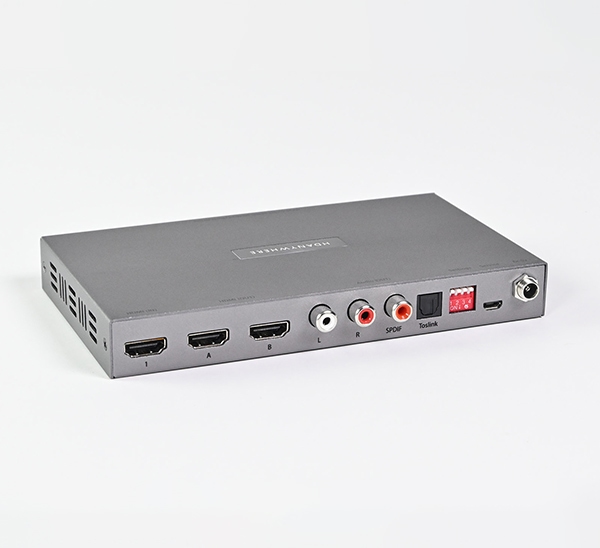

HDANYWHERE Dolby Downmixer Front

A 4K HDMI with Dolby Audio® and DTS-HD® Stereo Audio Downmixer that supports the transmission of high bandwidth 18Gbps video over HDMI and allows the related audio to be extracted and divided to both digital and analogue audio outputs, resulting in high quality audio and video.

The Dolby Audio Down-Mixer can downmix conventional Dolby Audio and DTS-HD formats up to 7.1 and output stereo (LPCM 2.0) audio through HDMI, S/PDIF (optical and coaxial), and analogue RCA.

HDANYWHERE Dolby Downmixer Back
Manual
Datasheet

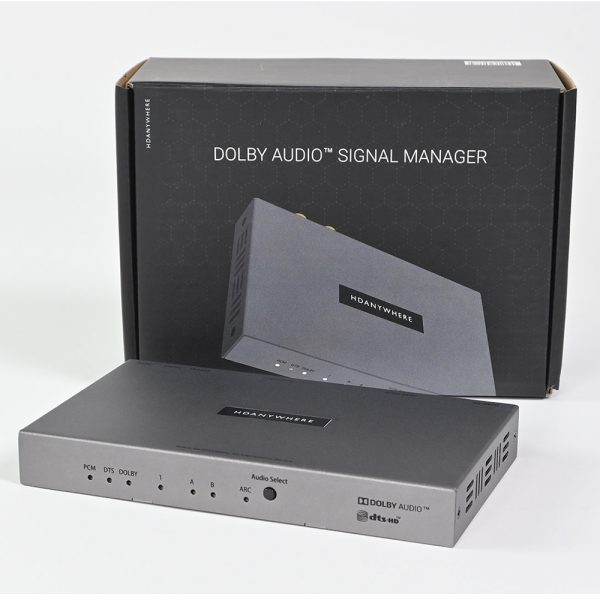

HDANYWHERE Dolby Downmixer Unit & Box

Features

Dolby® and DTS® Certified AV Signal Manager

Up to Dolby® Atmos™ and DTS:X® downmixed to 2-channel stereo out any or all outputs

Dual simultaneous HDMI outputs

HDMI Output A supports 4K (with HDR) downscaling to 1080p

HDMI Output B supports ARC for extracting analogue and digital 2-ch audio

4K/60 (4:4:4) with HDR10, HDR10+, Dolby Vision, HLG*

18Gbps throughput over both HDMI outputs

HDCP 2.2 & 1.4 compliant

Digital Interpolation Filter for high-bitrate digital audio extraction

Integrated Digital Analogue Convertor

Always-on simultaneous analogue, SPDIF & Toslink 2-ch audio extraction

Basic EDID management

Installer-configurable HDMI Downscaling, Downmixing & ARC On/Off via Dipswitch

What's Included?

1 x Downmixer unit

2 x Wall brackets (with screws)

1 x rubber feet

1 x Power Supply

4 x Plug Adaptors

HDANYWHERE Dolby Downmixer Contents
Technical Specs
Inputs x outputs
  • 1 HDMI / 2 HDMI (passthrough / scaled), L/R stereo, RCA, TOSLINK
Transmission tech.
  • Native HDMI
Power Supply
  • DC 5V/2A (US/EU standards, CE/FCC/UL certified)
Power consumption
  • 6W
General
Form factor
  • Lightweight slender aluminium enclosure
Device Weight
  • 130g
Dimensions (W x D x H)
  • 172 x 99 x 23mm
Operating temperature
  • 5°C ~ 51°C
Storage temperature
  • -20°C ~ 60°C
Relative humidity
  • 5~90% RH (non-condensing)
Guarantee
  • 2-year guarantee

*Whilst Dolby Vision passthrough is supported, Dolby Vision downmixing is not.

Product Specifications

Physical and Performance Attributes

Weight250 grams
